@utomated Entertainment HD Dichroic™ ZC&R Blacklite™



HD Waterline™

Wet Environment & Subermisable Specialty Lighting Fixtures

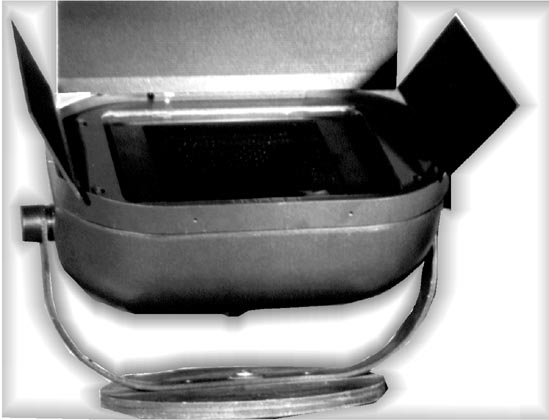

BlackSplash™

Splash Resistant Blacklite™


FIXTURE: Splash proof cast/extruded copper free aluminum. Black powder coat.
WEIGHT: Head 18 pounds. Ballast 27 pounds.
LAMP: Linear 400W metal halide
BEAM ANGLE:  105º x 60º flood. Other configurations available.
AVERAGE THROW:  Flood 40'
FILTER:  8" x 8" (203mm) tempered optical filter glass @ 365nm
POWER: 110/120V, 60Hz @ 4.5 amps.  220/240V, 50Hz Special order.
FEATURES: Internal safety cut off switch.

OPTIONS: Barn doors. Custom powder coat colors available. Custom reflector configuration.

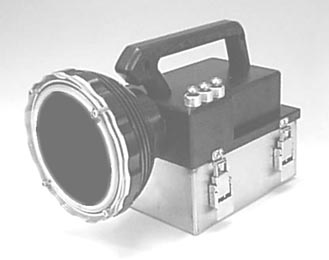

HD Xenon Underwater Search Blacklite™



When used underwater this light produces an incredible columnated beam. Underwater cinematography, photography, biosciences, and special effects.

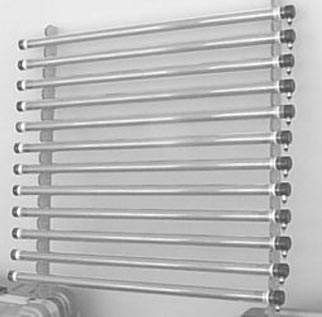

HD SubFluor Blacklite™



It is now possible to introduce the use of blacklite fluorescents to the underwater imaging world. Each tube is designed with an underwater mateable connector and the 100 foot long extension cord that plugs directly into the ballast. Underwater photography, cinematography, ultraviolet and bioscences.

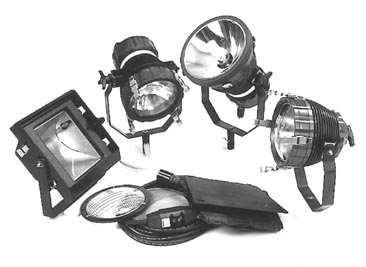

HMI cinematography and ultraviolet submersible fixtures from 200 - 4,000 W





Submariner™ Underwater Dichroic Par 56-64


FIXTURE: Cast bronze construction
LENS:  8-3/8" convex clear tempered cover glass with HD Dichroic retrofit ring to accommodate HD Dichroic color filter
GASKET: Single piece molded "U" shape silicone
LAMP: Clip mounted 120v Par 64, 1000 W
FASTENERS: Stainless steel or silicone bronze
SOCKET: Mogul end prong type 2000 C insulated leads
FACTORY: Wire, leak tested
LOW WATER CUT OFF:    Temperature sensing LWC           UL Listed





Mariner™   56-64/1000

Marine Grade Outdoor Lighting Fixture with

Dichroic Snoot & Scrolling Color Changer


FIXTURE: Copper free cast aluminum or submersible bronze
LAMP: Clip mounted 120v Par 64, 1000 W. Par 56 or 64, 500W
HD DICHROIC™ SNOOT: Copper free rolled aluminum. Accommodates 8" of HD Dichroic™ color filter
OPTIONAL: Pyrex beaded spread lenses

UL Listed

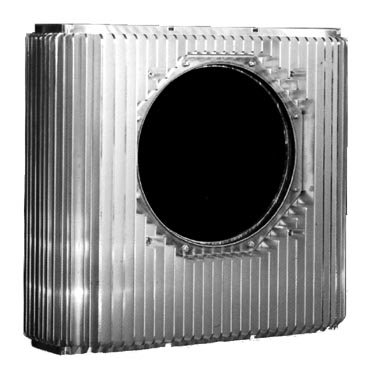

HD WetFader™



The only environmentally sealed, weather resistant color fading system in the world. The WetFaderTM operates via DMX 512 control signal and dissolves color by secondary color mixing using three color scrolls - cyan, yellow and magenta. Seamless color mixing with bump or time fade cueing.

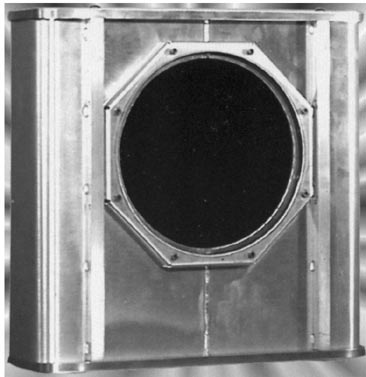

HD SubFader™



The only submersible color fading system in the world. The SubFader™ operates via DMX 512 control signal and dissolves color by secondary color mixing using three color scrolls - cyan, yellow and magenta. Seamless color mixing with bump or time fade cueing.




For more information and pricing about our HD Waterline™

submersible products please contact us
